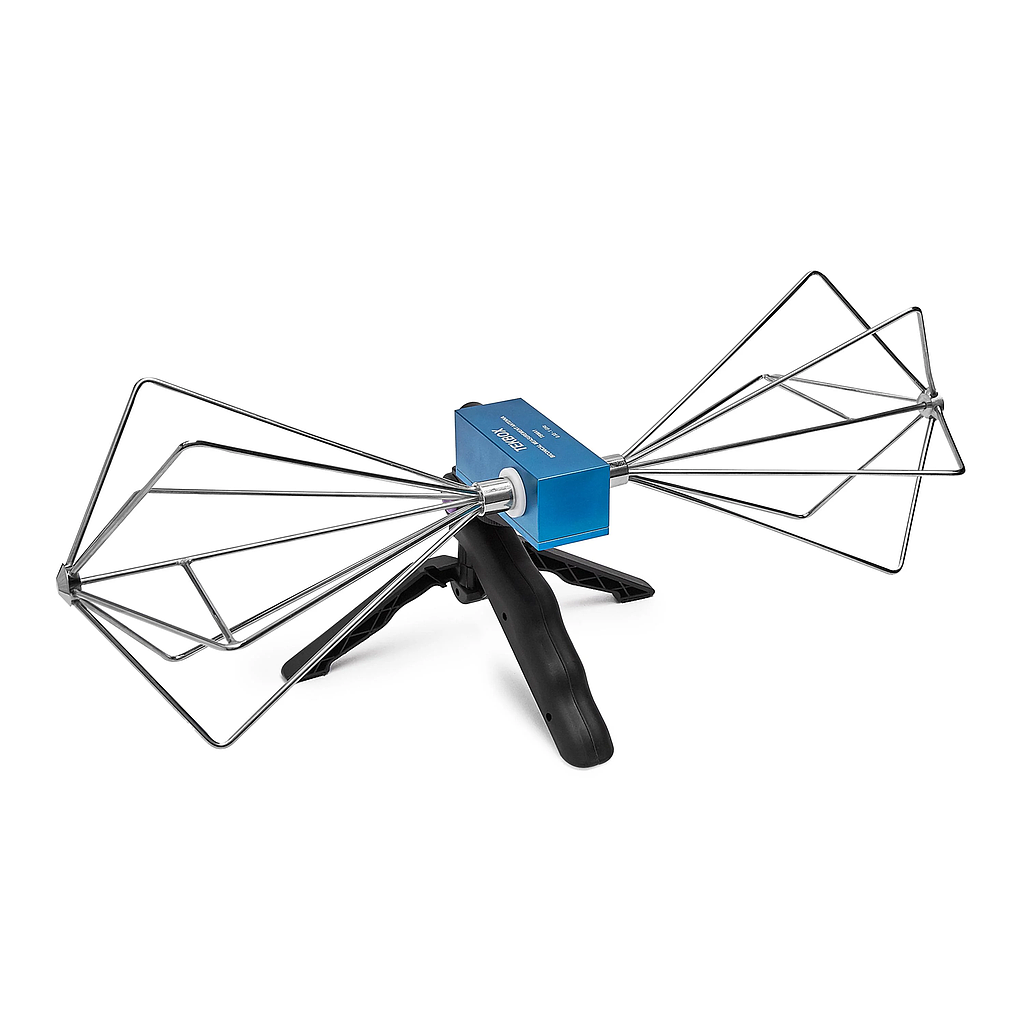

Tekbox TBMA1B Biconical Antenna (30MHz – 3000 MHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBMA1B
USD 856.68
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: passive biconical
Frequency range: 30 MHz – 3000MHz
Isotropic gain at 3m spacing: -38.46 … 1 dBi
Antenna factor at 3m spacing: 17.24 … 51.20 dB/m
Maximum continuous input RF power: 2W
Nominal impedance: 50 Ω
RF Connector: N type female
Matching: 1:2 transformer + 1:1 balun
Tripod Adapter Thread Size: 1/4 “
Mechanical Dimensions: L x W x H: 430.73 mm x 163.08 mm x 138.79 mm (16.96” x 6.42” x5.46”)
Weight: 0.46 kg (1.01 lbs)
