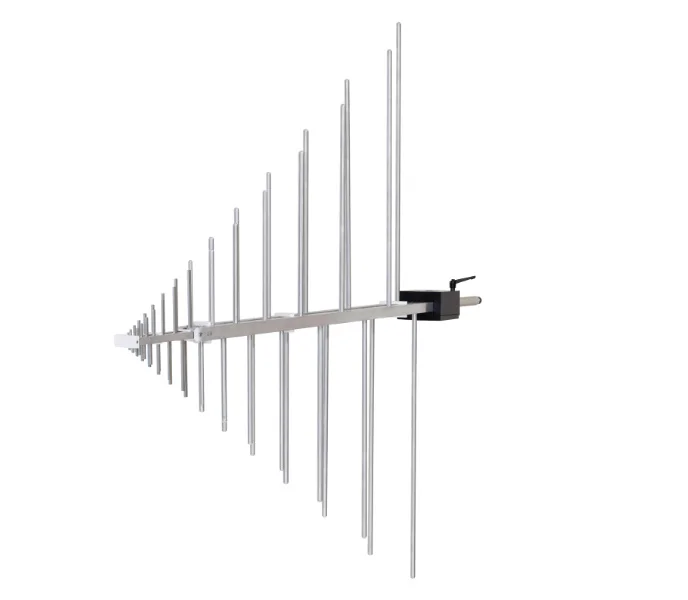

Tekbox TBMA12 Hybrid Measurement Antenna (30 MHz – 6000 MHz)

Type: Hybrid antenna

Frequency range: 30 MHz– 6000 MHz

VSWR: <3 (f > 75 MHz)

Isotropic gain at 3m spacing: -16.83 …8.16 dBi biconical & log. periodic sections

Antenna factor at 3m spacing: 7 … 41 dB/m biconical & log. periodic sections

Average 3dB Beamwidth (E-plane): 47°

Average 3dB Beamwidth (H-plane): 85.7°

Maximum continuous input RF power: 130W

Nominal impedance: 50 Ω

RF Connector: N type female

Mounting: 22 mm diameter mounting shaft (tube)

Mechanical Dimensions: L x W x H: 1346mm x 1504mm x 558mm (53” x 59.2” x 22”)

Weight: 6.9 kg (15.21 lbs)
