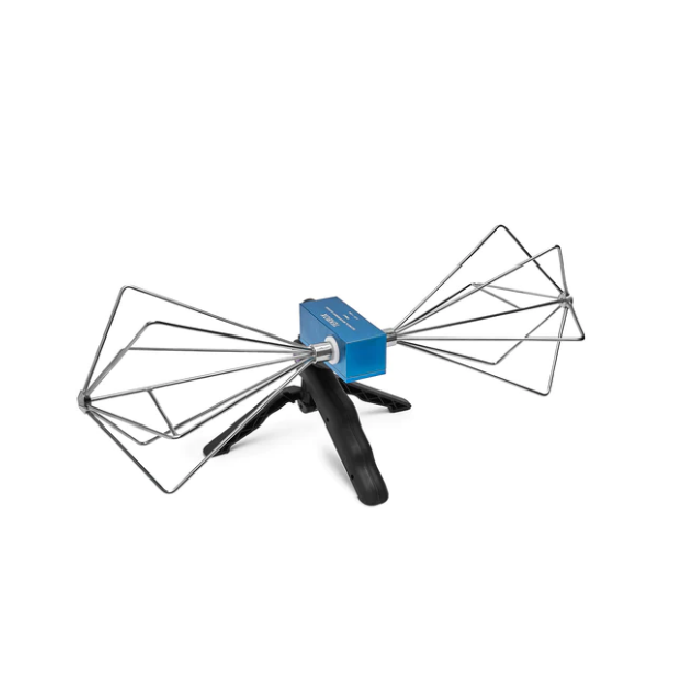

Tekbox TBMA1 Biconical Antenna
ManufacturerTekbox(View more products from this manufacturer)
ModelTBMA1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: passive biconical
Frequency range: 30 MHz – 1000MHz
Nominal impedance: 50 Ω
Maximum continuous input RF power: 2 W
Connector: N type female
Isotropic gain: -42.15 … 1.78 dBi
Antenna factor: 16.30 … 41.91 dB/m
Voltage Standing Wave Ratio (VSWR): Max < 2.8
Length: 430 mm (17 “) tip-to-tip
Diameter: 160 mm (6.3 “)
Depth: 163 mm (6.4 “) including housing
Weight: 0.46 kg (1.01 lbs)
Tripod Adapter Thread Size: ¼”
