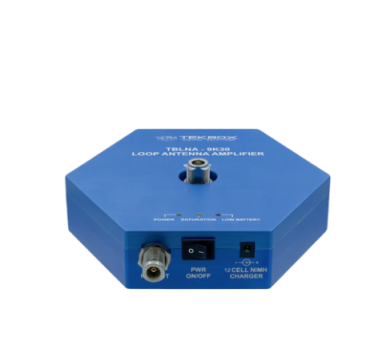

Tekbox TBLNA-9K30 Loop Antenna Pre-Amplifier (43dB, 9 kHz ~ 30 MHz)

Frequency range: 9 kHz to 30 MHz

Gain: 43 dB, typ.

Input return loss: < -15 dB @ 9 kHz to 30 MHz, typ.

Output return loss: < -20 dB @ 9 kHz to 30 MHz, typ.

Noise voltage: 1nV / √Hz, typ.

P1dBout: +15 dBm (indicated with yellow LED)

IP3out: +28 dBm

Connector type: N female

Power supply: 12 pieces standard AA NiMh cells (not supplied)

Charger: Mascot Type 2116

Current consumption: 120 mA

Operation time: ca. 10 hours, depending on NiMh battery model

Indicators: LED indicators for Pwr On, Low Battery, Saturation

Dimensions: ⌀ 180 mm, height 52 mm

Weight: 1.7 kg

Tripod mount: ¼” thread
