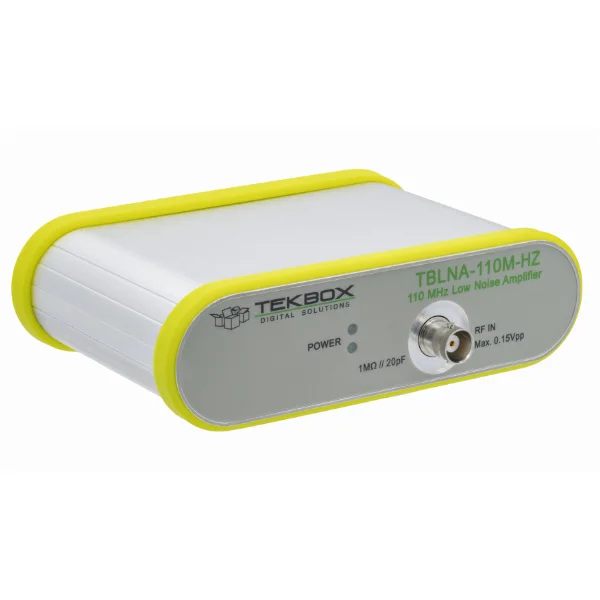

Tekbox TBLNA-110M-HZ DC-coupled Impedance Converter

General specification

Flat frequency range: DC – 110 MHz, typ.

3 dB frequency range: DC – 500 MHz, typ.

Usable frequency range: DC – 1 GHz

Gain: 0 dB, 20 dB

RF-connectors: BNC-female

Input specification

Input impedance: 1 MΩ // 20 pF

Input Noise Voltage: >2 MHz: typ. <10 nV/√Hz; for details see chapter 3.3

Maximum input level for linear output:

150 mVpp for output saturation at the 20 dB gain output, 1:1

1.5 Vpp for output saturation at the 20 dB gain output, 1:10

1.5 Vpp for output saturation at the 0 dB gain output, 1:1

15 Vpp for output saturation at the 0 dB gain output, 1:10

Maximum ratings: 50 Vpp AC

Output specification

Output impedance: 50 Ω, detailed plots in chapter 3.2

Output return loss: > 25 dB, detailed plots in chapter 3.2

P1dBout:

+8.6 dBm (1.7 Vpp), 20 dB gain output

+8.6 dBm (≈1.7 Vpp), 0 dB gain output

IP3out:

+19 dBm, 20 dB gain output

+19 dBm, 0 dB gain output

DC offset: < 10 mV output offset

Supply specification

Power-connector: Coaxial power socket; 2 mm / 5.5 mm; positive center conductor

Indicator LEDs: Power ON, Power Good

Operating voltage: 12 V; external power supply 100 V – 240 V, 50/60 Hz

Current consumption: 275 mA

Operating temperature range: -20 °C to +50 °C

Dimensions: W 135 mm x H 40 mm x L 110 mm

Weight: 350 g
