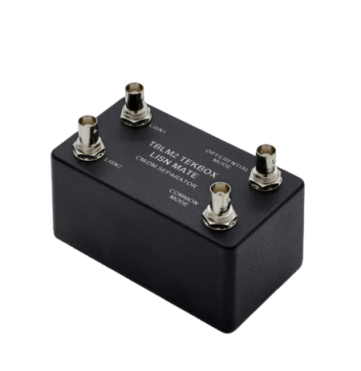

Tekbox TBLM02 Line Impedance Stabilisation Network (9kHz – 110 MHz)

Nominal frequency range: 150 kHz – 100 MHz

Usable frequency range: 9kHz – 110 MHz

Port impedance

│ZLISN1│, │ZLISN2│,│ZCM│: 150 kHz – 1 MHz: 30…55 Ohm

1 MHz -30 MHz: 50….60 Ohm

30 MHz – 100 MHz: 50….70 Ohm

│ZDM│: 150 kHz – 1 MHz: 30…50 Ohm

1 MHz -30 MHz: 40….50 Ohm

30 MHz – 100 MHz: 40….70 Ohm

│ZLISN1│: independent of the termination at the LISN2 port

│ZLISN2│: independent of the termination at the LISN1 port

│ZCM LISN1-LISN2│: 25 Ohm nominal

│ZDM LISN1-LISN2│: 100 Ohm nominal

Maximum RF level at any BNC port: 27dBm

Maximum DC current at any BNC port: 30 mA
