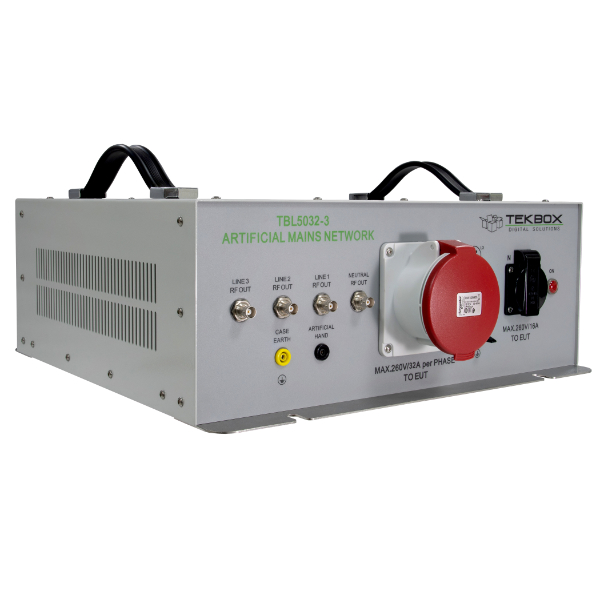

Tekbox TBL5032-3 Line Impedance Stabilization Network

Frequency range: 9 kHz to 30 MHz

Impedance: 50 Ω ║ (50 µH + 5 Ω)

Artificial hand: 220 pF + 511 Ω

Switchable PE: 50 Ω ║ 50 µH

250µH pre-filter

Separate RF outputs for each line and neutral

Air core inductors

Line voltage: max. 540V/260V / 50 – 60 Hz, CAT ‖

Max. current per line and neutral: 32A @ 23°C each 3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 32A, female

Single-phase DUT socket: country specific

Power connector: CEE/IEC60309, 3L+N+PE, 32A, male

Measurement connectors: 50 Ω BNC

External 9 kHz high pass filter, N-male / N-female

Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
