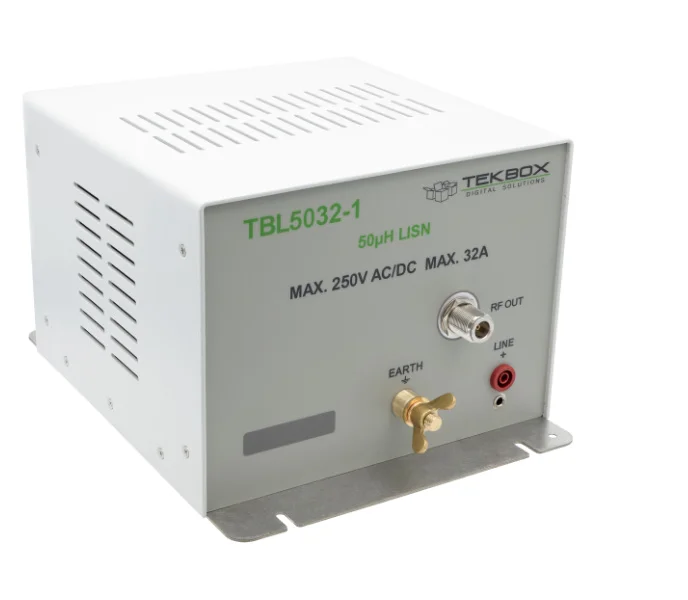

Tekbox TBL5032-1 50µH Line Impedance Stabilisation Network (10 kHz – 100 MHz)

ISN type: single path V-AMN, configurable (jumper) as 50Ω/50µH+5 Ω or 50Ω/50µH; no 250µH pre-filter

Characterized Frequency range: 10 kHz – 100 MHz

DC Resistance: 25 mΩ

Maximum current: 32A continuous

Operating voltage range: 0 – 500V DC; 0 – 270V AC (50/60 Hz), 0 – 120V AC (400 Hz)

EUT connector: 4mm Banana socket

Source connector: 4mm Banana socket

Earth: exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw

RF connector: N-Female

Dimensions: W x H x L; 205 mm x 155 mm x 360 mm;

Weight: 3 kg
