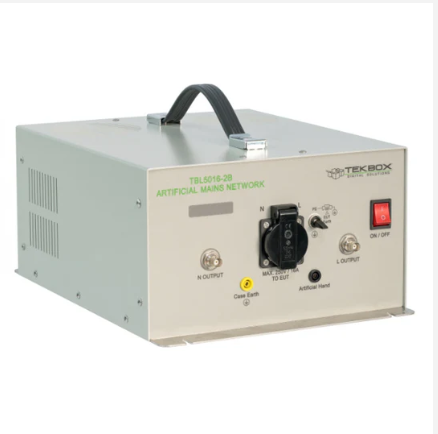

Tekbox TBL5016-2B Line Impedance Stabilisation Network (50 Ω ║ (50 µH + 5 Ω), 9 kHz~30 MHz)

Frequency range: 9 kHz to 30 MHz

Impedance: 50 Ω ║ (50 µH + 5 Ω)

Artificial hand: 220 pF + 511 Ω

Switchable PE: 50 Ω ║ 50 µH

Independent BNC outputs for line and neutral to provide connectivity for CM/DM separators (LISN Mate)

Air core inductors

Line voltage: max. 250V / 50/60 Hz or DC

Max. current: 16 A @ 23°C

EUT socket: country specific

Measurement connector: 50 Ω BNC

Power connector: IEC 60320 C19

Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
