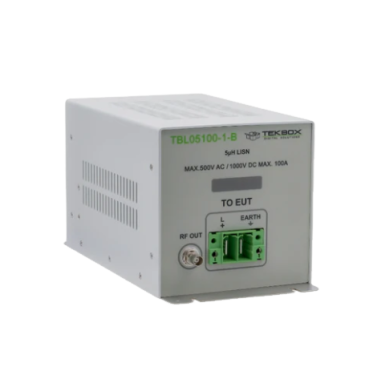

Tekbox TBL05100-1-B Line Impedance Stabilisation Network (50Ω // 5µH, 10 kHz – 400 MHz)

Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 set ups; an external 10µF capacitor is required for DO-160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper

Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2

Characterized frequency range: 10 kHz – 400 MHz

DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT-

Maximum current: 100A; see plot with heat up characteristics, chapter 8

Maximum operating voltage range: 0 – 500V AC @50/60 Hz, 250V AC @ 400Hz, 1000V DC

High current plug / screw terminals; male: Phoenix Contact 1762741, female: Phoenix Contact

2 pcs female terminal blocks are supplied as default accessories

Jumper: Harwin D3087-98

Dimensions: 300 mm x 150 mm x 150 mm

Weight: 2.7 kg

Manual
