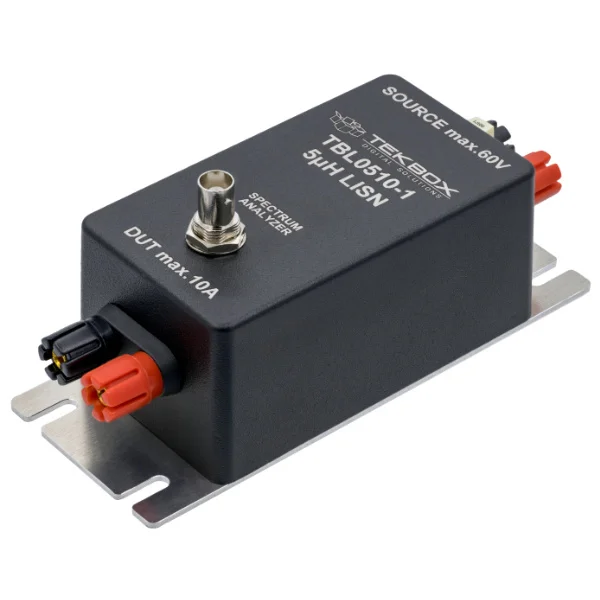

Tekbox TBL0510-1 DC Line Impedance Stabilisation Network LISN (10 kHz – 400 MHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBL0510-1
USD 381.48
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 10 kHz – 400 MHz; depending on standard and external capacitor
DC Resistance: 40 mΩ
Continuous current: 10A
Nominal operating voltage range: 0 – 60V DC
Absolute maximum rating of internal components: 200V DC; external 1µF capacitor: 100V
Built in surge protection
External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
