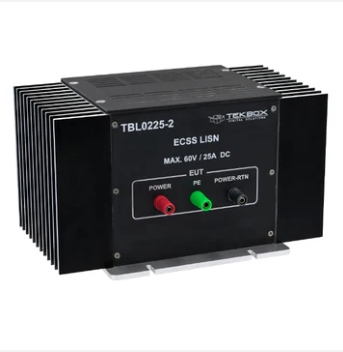

Tekbox TBL0225-2 Line Impedance Stabilisation Network (50 Ω // 2 µH, 10 Hz – 200 MHz)

LISN type: V-AMN, 50 Ω // 2 µH

Characterized frequency range: 10 Hz – 200 MHz

DC Resistance: 100 mΩ per path

Maximum current: 25 A continuous

Operating voltage range: 0 – 60V DC

EUT / SOURCE terminals: 4 mm banana sockets

Dimensions: W 260 mm x L 140 mm x H 150 mm

Weight: 4.1 kg
