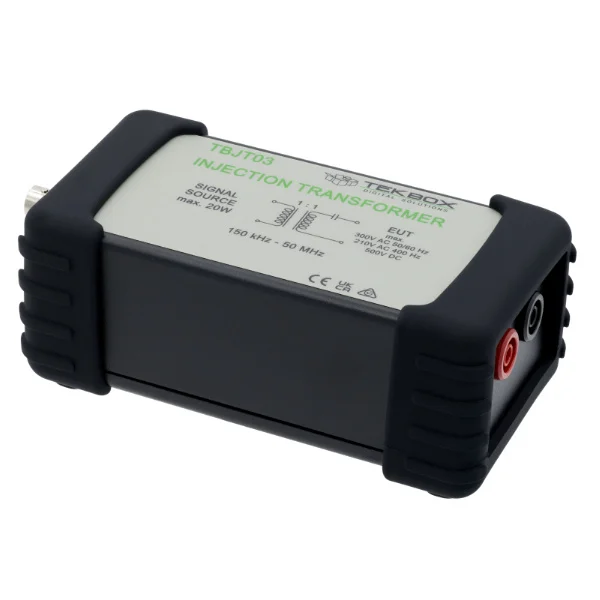

Tekbox TBJT03 Injection transformer (50 kHz – 50 MHz)

Compliance: RoHS

Impedance: 50 Ω

Turns ratio: 1:1; 56nF Y2 coupling capacitor on the EUT side

Characterized freq. range: 10 Hz to 100 MHz

3 dB frequency range: 50 kHz – 50 MHz typ.

Insertion loss (S21): 3 dB max. @ 50 MHz

Max. RF power rating: 20W

Output voltage rating: 300V AC @ 50/60 Hz, 210V AC @ 400 Hz; 500V DC

Residual 50 Hz voltage: 40 mV at the input connector (high Z) @ 240V AC at the secondary terminals

Isolation test, EUT – Input: 2500V, 22 GΩ

Primary connector (Input): BNC-Female

Secondary connectors (EUT): 4 mm safety banana jacks, 20 mm spacing

Operating temp. range: 0°C – 50°C

Enclosure dimensions: 70 mm x 60 mm x 140 mm

Weight: 300 g
