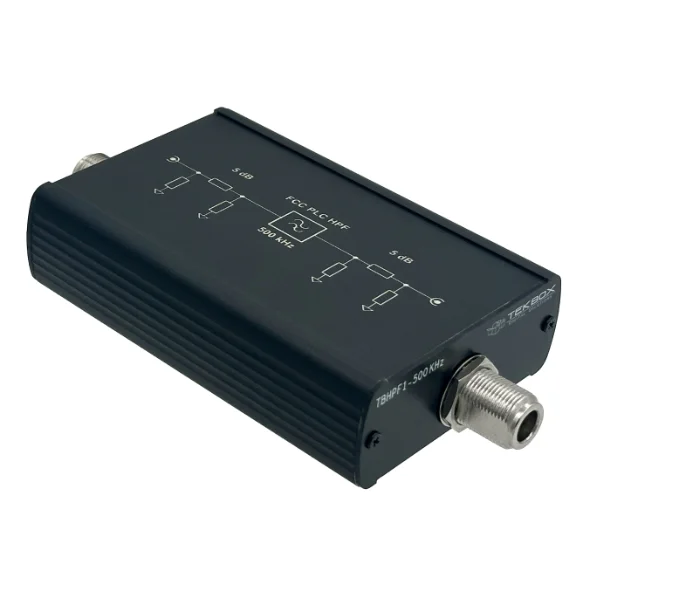

Tekbox TBHPF1-500kHz FCC PLC High Pass Filter (9 kHz – 30 MHz)

Filter topology: High Pass Filter, symmetric, 50 Ohm, 13 th order Cauer

Attenuator: Integrated; 2 x 5 dB

Nominal frequency range: 9 kHz – 30 MHz

3dB bandwidth: 540 kHz – 70 MHz

Stopband suppression: 9 kHz – 450 kHz < 60 dB (70 dB including attenuator), typ.

Input return loss, S11 (S22): 500 kHz – 30 MHz: < -20 dB, typ.

Impedance: 500kHz – 30 MHz: 50 Ω ± 10%, typ.

IP3out : f1 = 350 kHz, f2 = 400 kHz: +44 dBm, typ.

Filter capacitor voltage rating: 100V

Maximum input power: 10W

Connectors: N-Female

Dimensions: 80 x 35 x 150 mm

Weight: 350g
