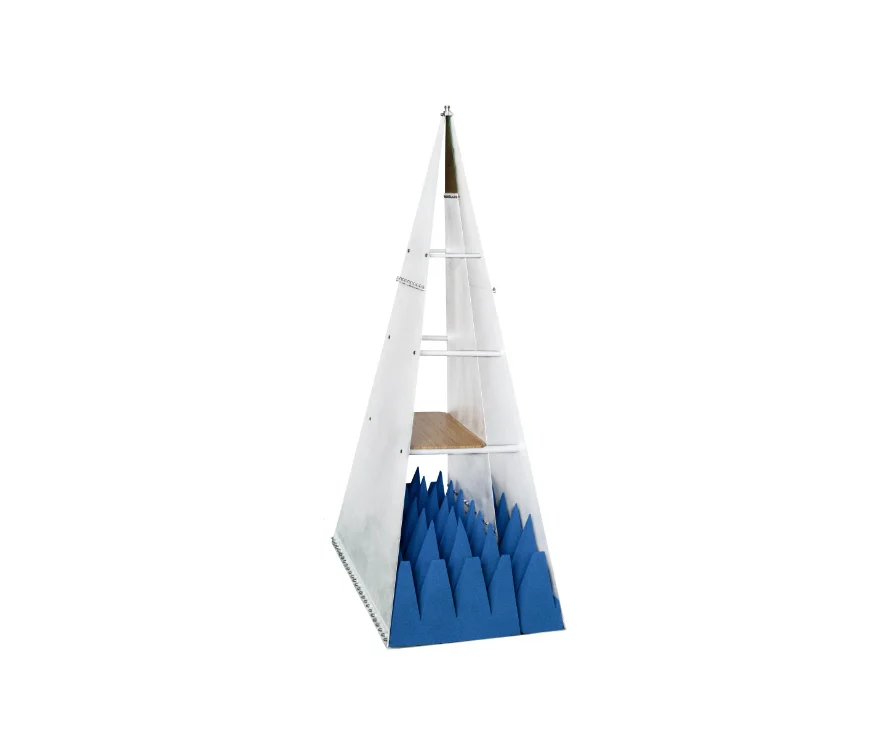

Tekbox TBGTC1 Open GTEM Cell (0.009 MHz – 6 GHz)

Septum Height: 250 mm at the location of the EUT-board

Outer dimensions (LxWxH): 1452x780x520 mm

Approx Cell Weight: 13 kg.

Maximum EUT size (LxWxH): 200x200x150 mm

Defined test volume (±3 dB < 3000 MHz, LxWxH): 100x100x100 mm

GTEM cell connectors: N-female

Nominal cell impedance: 50 Ohm

Frequency range: 0.009 MHz – 6 GHz

Wave impedance: 377 Ohm

Maximum continuous RF input power: 600W

VSWR: 1:1.3 typical, 1:1.9 max.

Field uniformity on maximum test volume: up to 3 GHz < ± 6 dB

Manual
