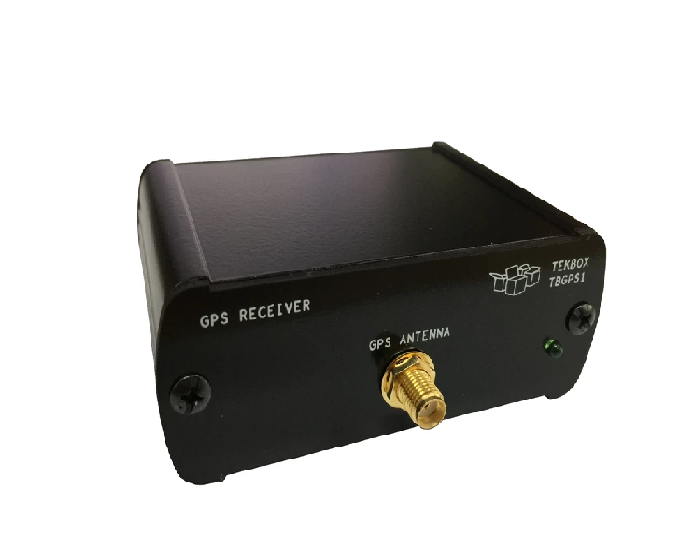

Tekbox TBGPS1 GPS Receiver

Autonomous / assisted GPS receiver

Built in LNA for high sensitivity

32 channel acquisition,

12 channel tracking

2 channel capable SBAS

-161 dBm sensitivity in acquisition under hot start mode and in tracking mode

Fast time to first fix Hot start outdoor: <1 sec @ -130 dBm, indoor: 6 sec @ -150 dBm. Warm Start -33 sec @ -130 dBm, Cold

Start: 33 sec typ @ -130 dBm

Accuracy of 1.3m outdoor (CEP 50%) and 12.5m (CEP 50%) indoor

Operating Temperature Range: -40°C ... + 85°C; 5% to 85% RH

Application

General purpose GPS receiver

RF coverage measurement with EMCview
