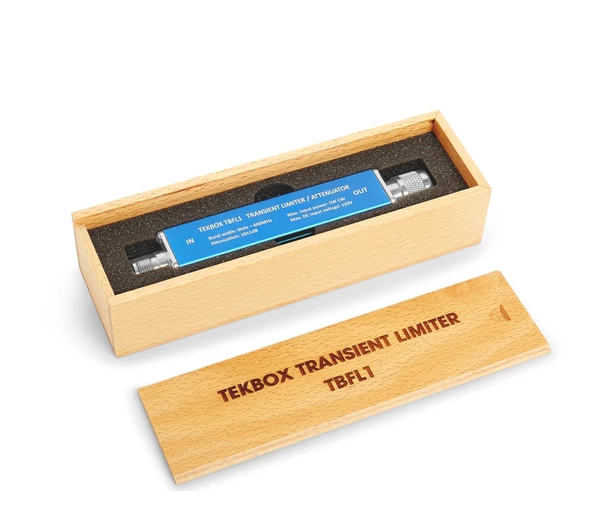

Tekbox TBFL1 Transient Limiter

Frequency range: 9 kHz – 600 MHz

Attenuation: 10 dB – 0.5/+1.2 dB in-band (9 kHz to 600 MHz)

Attenuation HP-filter: > 30 dB @ 2kHz

Maximum continuous RF input power: 5W (+37 dBm) in-band

Maximum DC input voltage: ± 20V

Input matching, linear operating range: 9 kHz - 600 MHz < - 16 dB

Output matching, linear operating range: 9 kHz - 600 MHz < - 23 dB

Linear operating range: up to 0 dBm input level, in-band

Limiting threshold: +11 dBm (@ 37dBm input level)

Input connector: N-female

Output connector: N-male

Dimensions: 156 mm x 26 mm x 26mm

Weight: 170 g
