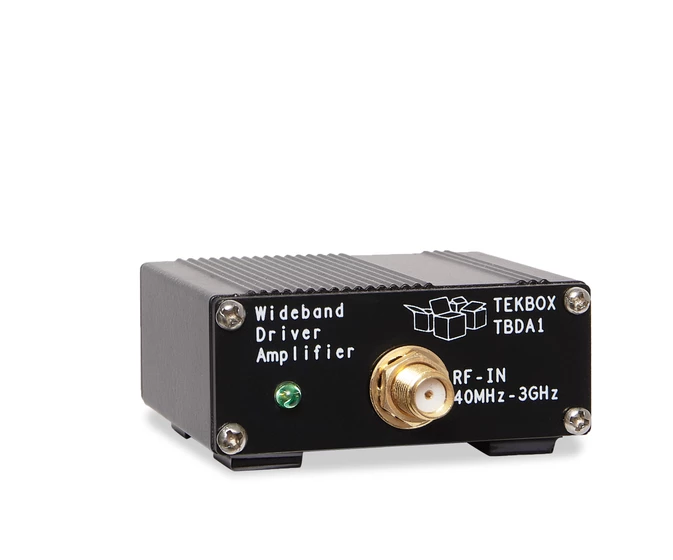

Tekbox TBDA1/14 Wideband Driver Amplifier

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +20dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +40dBm

3rd order output intercept point @ 2 GHz: +43dBm

Reverse isolation S12: -20dB

Noise Figure: 3 … 4 dB

Gain:

25 MHz: 12 dB

50 MHz: 13.8 dB

100 MHz: 14.2 dB

500 MHz: 14.2 dB

1 GHz: 14.1 dB

1.5 GHz: 14.2 dB

2 GHz: 13.6 dB

2.5 GHz: 13.8 dB

3 GHz: 14 dB
