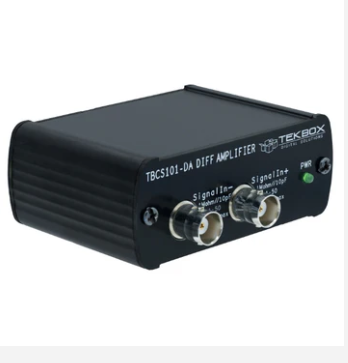

Tekbox TBCS101-DA Differential Amplifier (3dB, DC – 310 MHz)

General specification

Frequency range: DC – 310 MHz, 3 dB bandwidth, typical

Gain: 1:50

Rise time: ≤ 2.3 ns ( 200mV step)

RF-connectors: BNC-female

Input specification

Input impedance: 1 MΩ // 10pF

Maximum input level: max. ± 50 V for linear operation (100V differential mode)

Maximum ratings: max. ± 100 V common mode / 200 V differential mode for damage

Output specification

Output impedance: 50 Ω

Output return loss: > 20 dB, typ.

Common Mode Rejection: DC – 1 MHz > 70 dB; 1 MHz – 100 MHz ≥ 80 dB; 100 MHz – 310 MHz ≥ 50 dB

Max. output voltage: 2 Vpp

DC offset: < 10mV at output

Noise: < 1.4 mVRMS

Supply specification

Power-connector: USB-C

Indicator LEDs: Power ON

Operating voltage: 5 V DC

Current consumption: 90 mA

Operating temperature range: -20°C to +50°C

Dimensions: W 82 mm x H 33 mm x L 80 mm

Weight: 100 g

Manual
