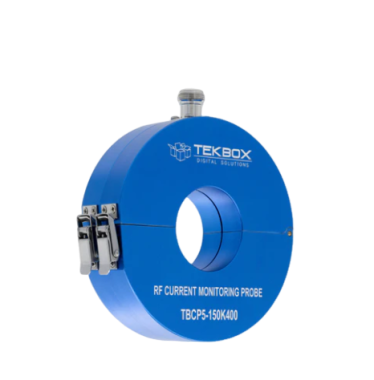

Tekbox TBCP5-150K400 RF Current Monitoring Probe (150kHz-400MHz)

Characterized frequency range: 10 Hz to 500 MHz3 dB bandwidth: 150 kHz to 400 MHz, typ.

Transfer impedance: 11 dBΩ (3.5 Ω) in the flat region, typ. (50 Ω load impedance)

Insertion impedance: <400mΩ up to 400 MHz (series measurement method)

Shunt capacitance: <1 pF (concentric cable with ⌀ 10 mm)

Output impedance: 50 Ω (resistive matching)

Max. bias current (DC - 400 Hz): 200 A (no influence on transimpedance)

Max. primary current (RF): 2 A

Max. core temperature: 125 °C

Connector type: N female

Aperture diameter: 46 mm

Outside diameter: 124 mm

Height: 36 mm

Weight: 320 g
