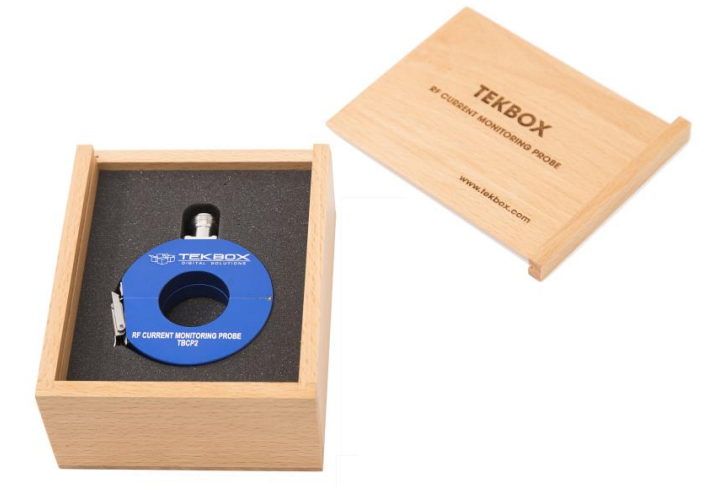

Tekbox TBCP2-20M700 Current Monitoring Probe (10 kHz ~ 800 MHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBCP2-20M700
USD 1,115.40
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Characterized frequency range: 10 kHz to 800 MHz
3dB bandwidth: 20 MHz – 700 MHz
Transfer impedance: 20 dBΩ, typ.
Max. primary current (DC - 400Hz): >100A, see graph in chapter 5
Max. primary current (RF): 15 A
Max. pulse current: 300A
Current-time product: 0.001 As
Max. core temperature: 125 °C
Connector type: N female
Aperture diameter: 32 mm
Outside diameter: 73 mm
Height: 20 mm
Weight: 320 g
