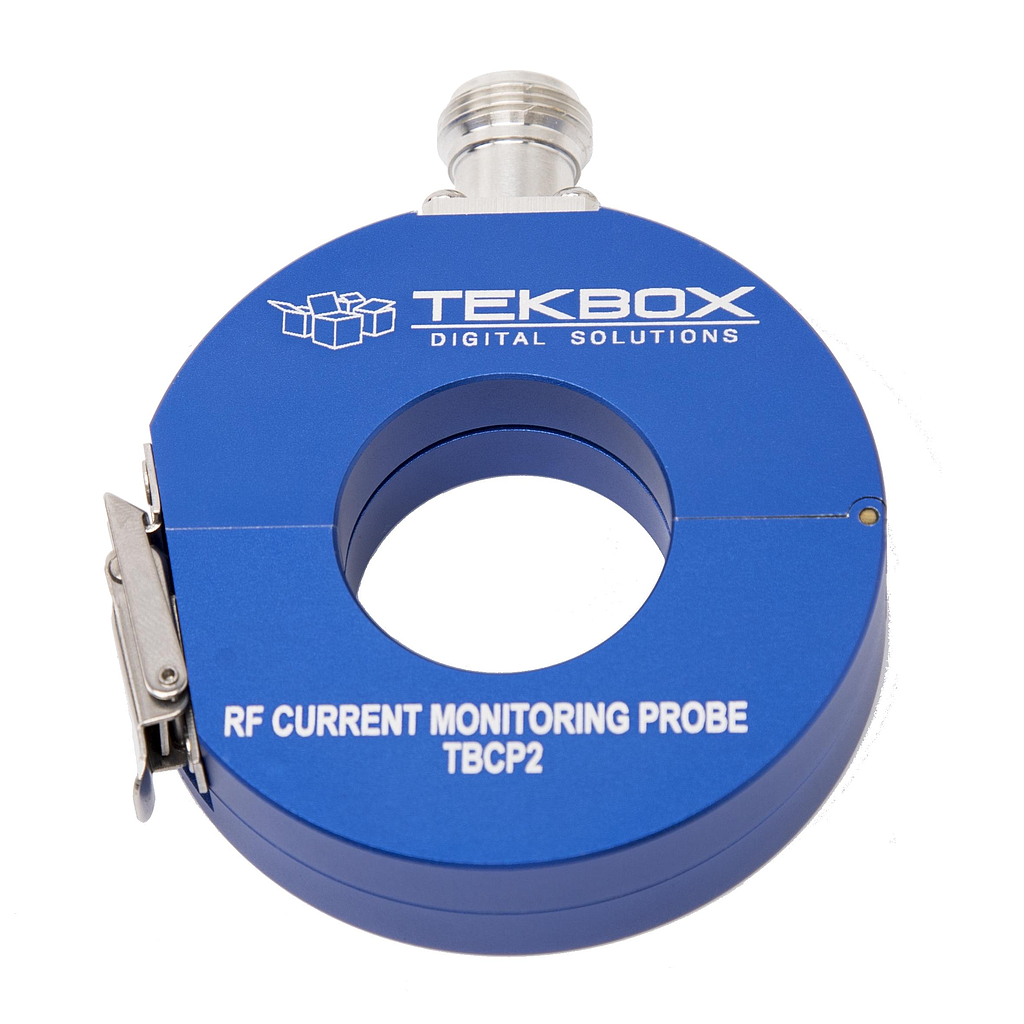

Tekbox TBCP2-1M800 RF current monitoring probe (10 kHz ~1 GHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBCP2-1M800
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Characterized frequency range: 10 kHz to 1 GHz
3dB bandwidth: 1 MHz – 800 MHz, typ.
Transfer impedance: 0 dBΩ, 1 V/A, typ.
Max. primary current (DC – 400Hz): 400A, see graph in chapter 5
Max. primary current (RF): 10 A
Max. pulse current: 400 A
Current-time product: 0.001 As
Max. core temperature: 125 °C
Connector type: N female
Aperture diameter: 32 mm
Outside diameter: 73 mm
Height: 20 mm
Weight: 320 g
