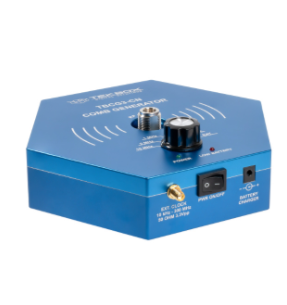

Tekbox TBCG3-CN Comb Generator (1.5 GHz)

Specified bandwidth: 1.5 GHz

Flatness of the comb spectrum: 8 dB typically

Output impedance: 50 Ohm

Output power: 66 dBµV @ 10 MHz f comb ; decreasing 6 dB with every fcomb/2

Amplitude stability: < 0.2 dB; <0.1 dB after 15 minutes

Aging: < 0.5 dB over 12 months

Output connector: N-female

Selectable, fixed comb frequencies: 100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz

Frequency stability: 50 ppm

External excitation input: 5 kHz – 300 MHz @ square input signal; 3.3 Vpp max 100 kHz – 300 MHz @ sinus input signal; 3.3 Vpp max

Input impedance: 50 Ohm

Input connector: SMA-female

Current consumption: 70 mA

Indicators: Power On LED, Low Battery LED

Power supply: 4 x AA NiMH (e.g. Varta Mignon 2700, not supplied)

Charger: external; Ansmann ACS110

Operation time: battery capacity / 70 mA

Temperature range: -20°C to +45 °C

Housing diameter: 180 mm

Housing height: 60 mm

Weight: 1250 g
