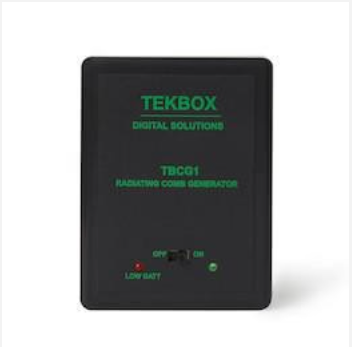

Tekbox TBCG1-100MHz Radiating Comb Generators (100 MHz, 30 MHz – 6 GHz)

Base frequency: 100 MHz

Characterized comb spectrum: 30 MHz – 6 GHz

Tolerance: +/- 2.5 dB

Power supply: 9V PP3 (E-block) alkaline battery

Current consumption: 175 mA

Dimensions: 80 mm x 61 mm x 27 mm

Weight including battery: 76 g

Warning: the TBCG1-100MHz radiates across a wide spectrum, significantly exceeding radiating noise limits specified in any CISPR standard. Use it only in a shielded environment to avoid interference with other electronic products

Turn off the device after its use, to prevent battery drainage (ION = 175mA)

Manual
