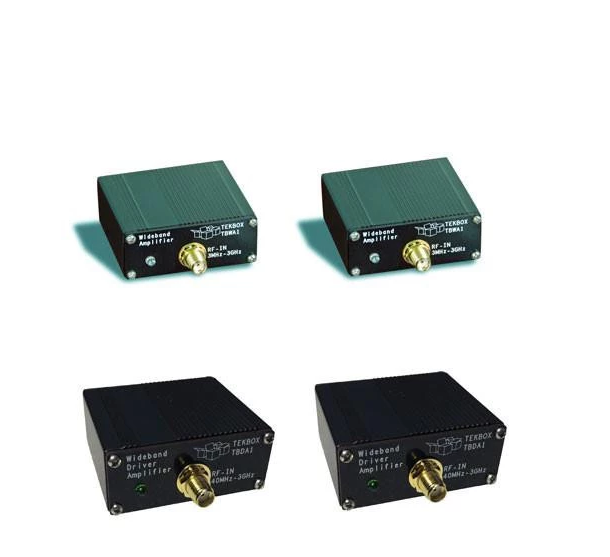

Tekbox 1TBWA2/20dB,1TBWA/40dB,1TBDA1/14,1TBDA1/28 Wideband Amplifier Set

TBWA2/40dB

Input: 50 Ohm, SMA

Output: 50 Ohm, SMA

Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: -10dBm

1dB output compression point @ 2GHz: +20dBm

Reverse isolation S12, 0.1 …6GHz: 40dB

Noise Figure @ 2GHz: 5 dB

Gain:

1 MHz: 30 dB

10 MHz: 40.2 dB

100 MHz: 40.2 dB

500 MHz: 40 dB

1 GHz: 39.5 dB

3 GHz: 36.4 dB

4.5 GHz: 34.6 dB

6 GHz: 34.7 dB

TBWA2/20dB

Input: 50 Ohm, SMA

Output: 50 Ohm, SMA

Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +10dBm

1dB output compression point @ 2GHz: +20dBm

3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm

Reverse isolation S12, 0.1 …6GHz: 23dB

Noise Figure @ 2GHz: 4.5 … 5 dB

Gain:

1 MHz: 14.8 dB

10 MHz: 20.2 dB

100 MHz: 20.2 dB

500 MHz: 20 dB

1 GHz: 19.8 dB

2 GHz: 19 dB

3 GHz: 17.6 dB

4.5 GHz: 17.4 dB

6 GHz: 15.4 dB

TBDA1/14dB

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +20dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +40dBm

3rd order output intercept point @ 2 GHz: +43dBm

Reverse isolation S12: -20dB

Noise Figure: 3 … 4 dB

Gain:

25 MHz: 12 dB

50 MHz: 13.8 dB

100 MHz: 14.2 dB

500 MHz: 14.2 dB

1 GHz: 14.1 dB

1.5 GHz: 14.2 dB

2 GHz: 13.6 dB

2.5 GHz: 13.8 dB

3 GHz: 14 dB

TBDA1/28dB

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +6dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +39.8dBm

3rd order output intercept point @ 2 GHz: +42.8dBm

Reverse isolation S12: < -40dB

Noise Figure: 3.1 … 4.1 dB

Gain:

25 MHz: 26 dB

50 MHz: 28.4 dB

100 MHz: 28.6 dB

500 MHz: 28.6 dB

1 GHz: 28.8 dB

1.5 GHz: 28.3 dB

2 GHz: 27.2 dB

2.5 GHz: 28.5 dB

3 GHz: 28.9 dB
