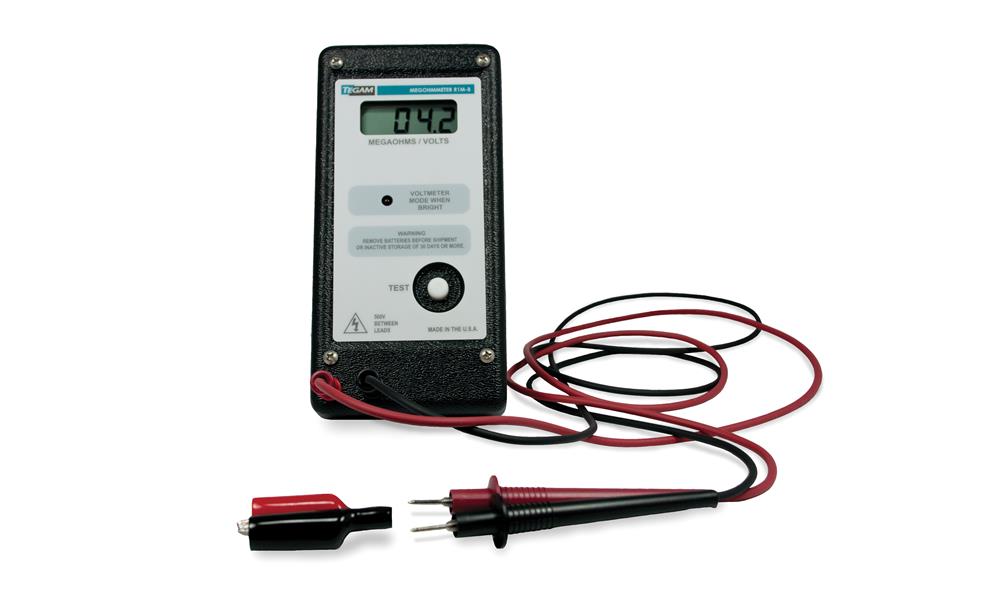

TEGAM R1M-B Megohmmeter (1 ~ 200 MΩ; 3 ~ 600 VAC RMS)

Measurement Range:

1 to 200 MΩ, for resistance

3 to 600 VAC RMS, for voltage

Test Voltage for Resistance: 500 VDC 10%

Accuracy* & Calibration:

Voltage readings within 5% of reading ± 1 count

Resistance readings within 3% of reading ± 1 count

Suggested Calibration Interval: 12 months

End-of-interval confidence factor: 72%

Recommended Calibration Cycle: 1 year

Controls and Display Single:

“TEST” switch (mode selection automatic)

3 ½ digit liquid crystal display with 0.5” digits

LCD “LO BAT” legend to indicate low battery

Environmental

Operating Temperature: 0 °C to 50 °C, 75 % RH, Non-condensing

Storage Temperature: -40 °C to 71 °C, 0-100 % RH, Non-condensing

Power and Physical:

Power Standard: alkaline 9 V battery

Size: 3.5” W x 7.0” H x 1.2” D

Weight: 0.6 lb (including battery)

Included Accessories:

Protective carrying pouch

Two 40 inch test leads with probes and insulated, detachable alligator clips

Operation and Maintenance manual
