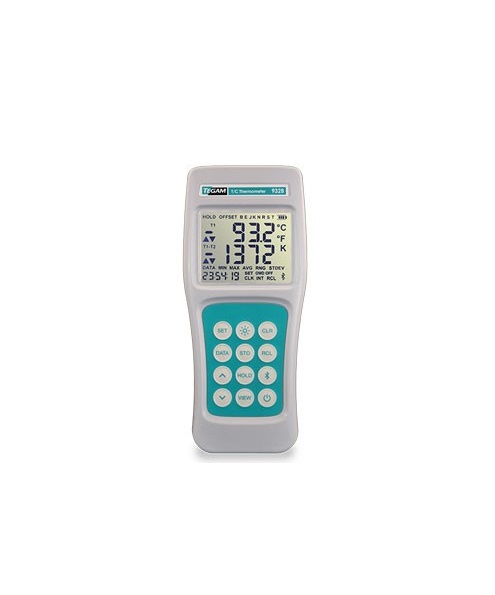

TEGAM 932B Datalogging Thermometer (±(0.04% |rdg| + 0.3 °C), Single input)

Basic Accuracy: ±(0.04% |rdg| + 0.3 °C)

Recommended Calibration Cycle: 2 years

Temperature Ranges: °C, °F, K

K: -200 to 1372 °C (-328 to 2502 °F, 73 to 1645 K)

J: -210 to 1200 °C (-346 to 2192 °F, 63 to 1473 K)

T: -250 to 400 °C (-418 to 752 °F, 23 to 673 K)

E: -250 to 1000 °C (-418 to 1832 °F, 23 to 1273 K)

B: 600 to 1820 °C (1112 to 3308 °F, 873 to 2093 K)

N: -250 to 1300 °C (-418 to 2372 °F, 23 to 1573 K)

R: -50 to 1767 °C (-58 to 3213 °F, 223 to 2040 K)

S: -50 to 1767 °C (-58 to 3213 °F, 223 to 2040 K)

Connector Type: Mini-TC

Probe Zero Function: Resolution 0.1 °C/°F/K

Display: 4-Digit Auto-Resolution (0.1°<1000°, 1°≥1000°) with Backlight and Function Annunciators

Reading Rate: 3/sec. for Readings and TREND indicators

Battery Type: 3 AA (IEC LR6, ANSI 15) Alkaline

Battery Life: 1000 Hours

Statistics: Min, Max, Avg, Rng, T1-T2 and Std Dev

Clock: Real or Elapsed Time based on mode

Operating Environment:

Temperature: -20 to 55 °C (-4 to 131 °F)

Humidity: 5 to 95%, 10 to 30 °C (5 to 95%, 50 to 86 °F)

Altitude: 0 to 4600 m (0 to 15,092 ft.)

Vibration: Random 10-500 Hz, 0.03 g²/Hz

Shock: 30g Half Sine

Drop: 4 drops from 1 m to concrete

Dimensions: 193 X 84 X 28 mm (7.6 X 3.3 X 1.1 in.)

Weight: 362.9 g (12.8 oz)

Communication: Bluetooth® low energy technology / version 4.0, 10 m Range

Internal Data Storage: Last 1000 Measurements with Time Stamp

Storage Modes: Automatic and Manual

Remote Operation: Android™, Apple Mobile Device Applications

Data Storage Rate: User Programmable, 1s Minimum Interval

Warranty: 3 year Parts & Workmanship

Calibration Guarantee: 2 year

Included Accessories: 3 AA Batteries, Quick Start Guide, Certificate of Traceability

Optional Accessories: Tilt Stand/Magnet/Hanger, Foam-Filled Hard Carry Case, Developers’ Kit, Printed Manual
