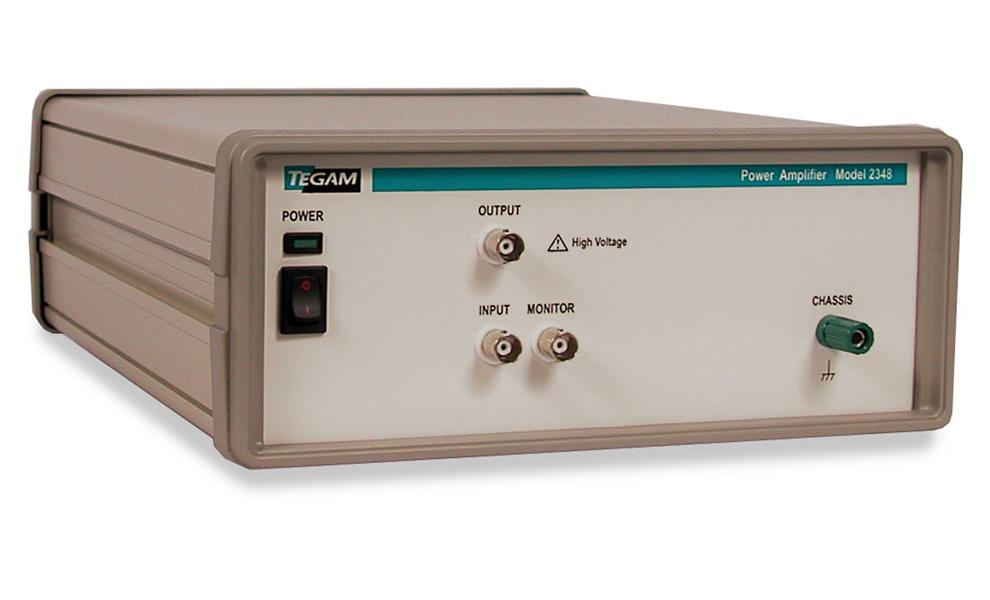

TEGAM 2348 Precision power amplifier (0 ~ ±25 V; 750 mA)

Electrical Specifications

Number of Channels: 1

Input Impedance: 50 Ω Direct Coupled

Output Voltage Range: 0 to ± 25 V Direct Coupled

Maximum Output Current: 750 mA

Sine Wave Distortion (THD): See Figure 2 (datasheet)

Voltage Gain: +10 Fixed

Bandwidth: DC to 2 MHz, 50 Vp-p Full Load (-3 dB)

Full Power Bandwidth: DC to 500 kHz / 50 Vp-p / 750 mA Sine - Typical (-0.4 dB) (RL=33 Ω)

Slew Rate: >200 V/μs

Square Wave Response (10 %-90 %):

< 0.16 μs for 35 Volt Step

RL=23 Ω - Typical

Aberrations:

< 2 %

50 Ω Voltage Monitor Output 50 Ω Input Z (20:1 Ratio)

> 1 MΩ Input Z (10:1 Ratio)

Environmental

Operating Temperature: 0 ºC to +45 ºC (+32 ºF to +113 ºF) Ambient

Storage Temperature: -20 ºC to +50 ºC (-4 ºF to +122 ºF)

Humidity Range: < 80 % RH Non-Condensing

General

Input Supply Voltage: 110/220 50/60 Hz – Rear Panel Selectable

Power Rating: 100 VA; 80 W

Dimensions (H x W x L): 4.51 in x 10.14 in x 11.81 in (11.5 x 25.8 x 30.0 cm)

Weight (approximate): 4.5 kg (10 lb)

Recommended Calibration Cycle: 1 Year

Warranty: 1 Year Parts and Labor

Included Accessories:

CD User’s Manual - P/N 810049-CD

Power Cord - P/N 60014
