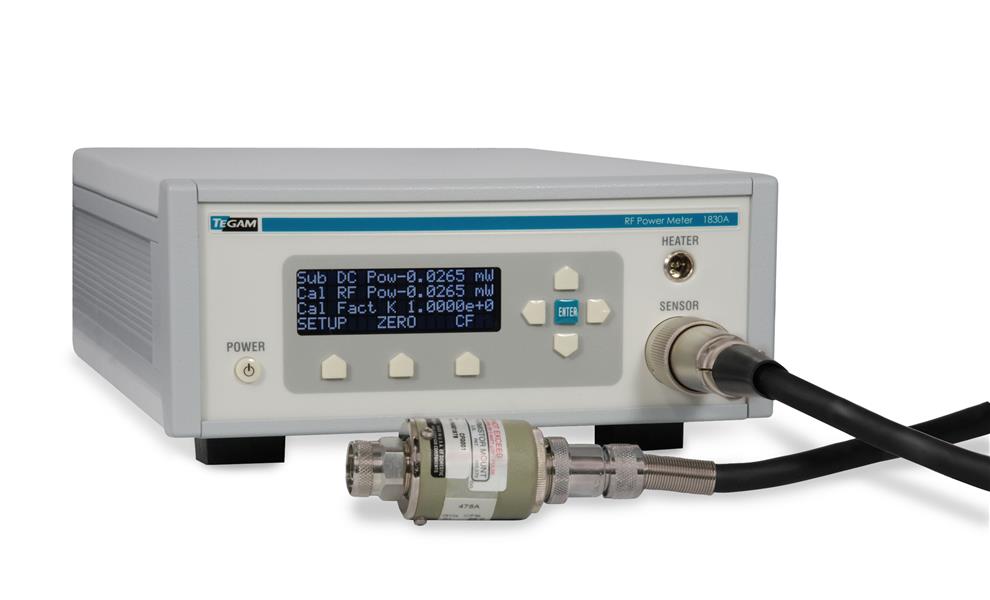

TEGAM 1830A RF thermistor power meter (-30 ~ +14dBm; 100kHz ~ 50GHz)

Power Range: -30 to +14 dBm (0.001 mW to 30 mW)

Frequency Range: 100 kHz to 50GHz (sensor dependent)

Meter Uncertainty: ±0.05% of reading, ±0.5 µW (0.1% at 1 mW)

Cal. Factor Resolution: 4 digit

Bridge Resistance: Variable from 50 Ω to 300 Ω (RF termination 12.5 Ω to 75 Ω)

Heater Circuit: 8 VDC @ 200 mA (compatible with all TEGAM and Weinschel thermistor mounts)

Sensor Connections: Sensor 14-pin quick connect

Heater: 4-pin mini-microphone

Communications: USB, 10/100 BaseT Ethernet

Operating Temperature: 0 ºC to +55 ºC

Storage Temperature: -40 ºC to +75 ºC

Humidity: 0-95 % RH non-condensing

Power Requirements: 100 to 240 VAC, 75 VA Max

Weight: 2.0 kg (4.4 lb)

Dimensions: 2U ½ Rack 8.89 cm x 21.59 cm x 33.02 cm (3.5 in x 8.5 in x 13 in)

Supported Sensors:

Agilent: 478A, 8478B, S486A, G486A, J486A, H486A, X486A, M486A, P486A, K486A, R486A

TEGAM/Weinschel: 1107-7, 1107-8, 1807, M1110, M1111, M1118, M1120, M1125,

M1130, M1135, F1109, F1116, F1117, F1119, F1125, F1130, F1135

Any thermistor mounts compatible with Agilent 478A

Software Support: PS-Cal, IVI-compliant LabView driver

Included Accessories:

Power Cord 068-21

Manual 1830A-901-01
