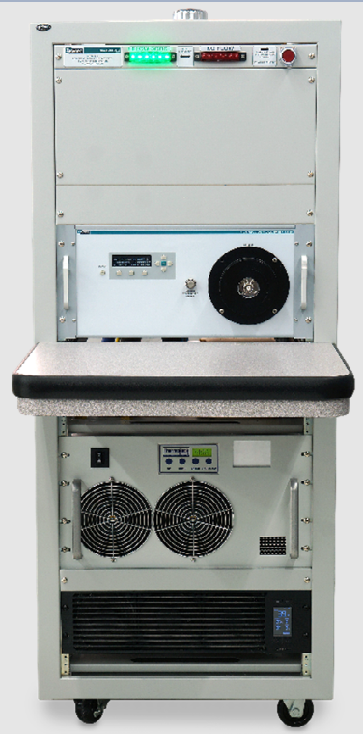

TEGAM 1316A RF calorimeter (50 Hz ~ 500 MHz)

Measurement Ranges

Frequency (MHz): 50 Hz to 500 MHz

Power (W): Connector/Frequency Dependent:

With standard HN connector:

10 W to 10,000 W: 50 Hz to 2 MHz

10 W to 8,900 W: >2 MHz to 13.56 MHz

10 W to 6,200 W: >13.56 MHz to 27.12 MHz

10W to 5,000 W: >27.12 MHz to 40.68 MHz

10W to 4,100 W: >40.68 MHz to 60 MHZ

10 W to 2,200 W: >60 MHz to 200 MHz

10 W to 1,300 W: >200 MHz to 500 MHz

With optional 3-1/8” connector: 10 W to 10,000 W: 50 to 500 MHz

Connector Type: HN (female) standard, 3-1/8” optional

Basic Accuracy: 1.5 W + 0.3% Rdg

Power Requirements:

Calorimeter: 220 – 240 VAC, 20 A

Chiller: 220 – 240 VAC, 20 A

Chiller (coarse control): 208 VAC, 3-Phase, 16.5 A

AC Power Source: 208 VAC, 3-Phase, 42 A

AC Power Standard: 100 – 240 VAC, 10 A

Physical Dimensions:

Calorimeter Cabinet: 46 x 22.5 x 56 in (117 x 57 x 142 cm)

Chiller (coarse control): 29.25 x 28.5 x 62 in (74 x 72.4 x 157.5 cm)

AC Power Source: 32 x 25 x 56 in (81.3 x 63.5 x 142.24 cm)

Coolant Flow Rate: 4 gallons (15.2 Liters) per minute nominal

Common Specifications:

Drift: < 50% of uncertainty over 48 hours

Input Impedance: 50 Ω nominal

S11 Linear Magnitude: Typical < 0.025 at f < 100 MHz, and <0.1 at f >= 100 MHz

Communication: Ethernet

Cooling Fluid: 25% DOW-Therm SR-1, 75% deionized water

Operating Temperature: 68 to 86 °F (20 to 30 °C)

Storage Temperature: 14 to +122 °F (-10 to +50 °C)

Warranty: 1-year Parts & Workmanship for TEGAM-manufactured components
