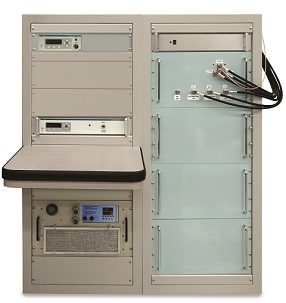

TEGAM 1314 RF high power precision calorimeters (50 Hz - 3000 MHz)

Measurement Ranges

Frequency (MHz): 50 Hz to 3000 MHz

Power (W): 10 W to 250 W

Connector Type: Type N (female)

Basic Accuracy: 0.3 W + 0.3% Rdg

Power Requirements:

Calorimeter: 100 – 240 VAC, 1.5 A

Chiller: 100 – 240 VAC, 9.4 A

Chiller (coarse control): N/A

AC Power Source: 104 to 127 VAC, 10 A

AC Power Standard: 100 – 240 VAC, 10 A

Physical Dimensions:

Calorimeter Cabinet: 46 x 22.5 x 56 in (117 x 57 x 142 cm)

Chiller (coarse control): N/A

AC Power Source: 16.75 x 5.25 x 22.6 in (42.5 x 13.3 x 57.5 cm)

Coolant Flow Rate: 1 gallon (3.75 Liters) per minute nominal

Common Specifications:

Drift: < 50% of uncertainty over 48 hours

Input Impedance: 50 Ω nominal

S11 Linear Magnitude: Typical < 0.025 at f < 100 MHz, and <0.1 at f >= 100 MHz

Communication: Ethernet

Cooling Fluid: 25% DOW-Therm SR-1, 75% deionized water

Operating Temperature: 68 to 86 °F (20 to 30 °C)

Storage Temperature: 14 to +122 °F (-10 to +50 °C)
