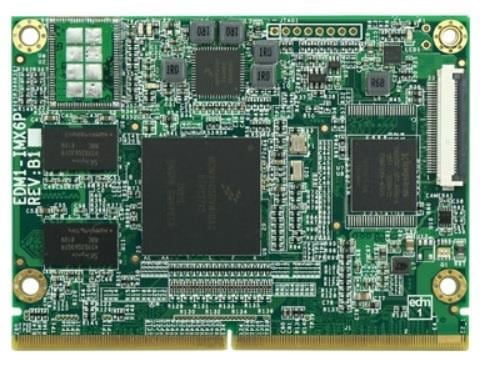

TechNexion EDM1IMX6U10R10E08TE System-On-Modules - SOM EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 1GHZ + PMIC + 1GB RAM + 8GB EMMC + GIGABIT LAN EXTENDED TEMP -20~70C
ManufacturerTechNexion(View more products from this manufacturer)
ModelEDM1IMX6U10R10E08TE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Flash: 8 GB
Frequency: 1 GHz
Dimensions: 82 mm x 60 mm
Form Factor: EDM Compact
Memory Size: 1 GB
Memory Type: DDR3
Installed RAM: 0 GB
Interface Type: CAN, Ethernet, GPIO, HDMI, I2C, I2S, JTAG, PCIe, PWM, SATA, S/PDIF, SPI, UART, USB
Processor Type: i.MX 6DualLite
Processor Brand: NXP
Processor Series: i.MX6 DualLite
Maximum RAM Capacity: 1 GB
On-Board Storage Size: 8 GB
On-Board Storage Type: eMMC
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
