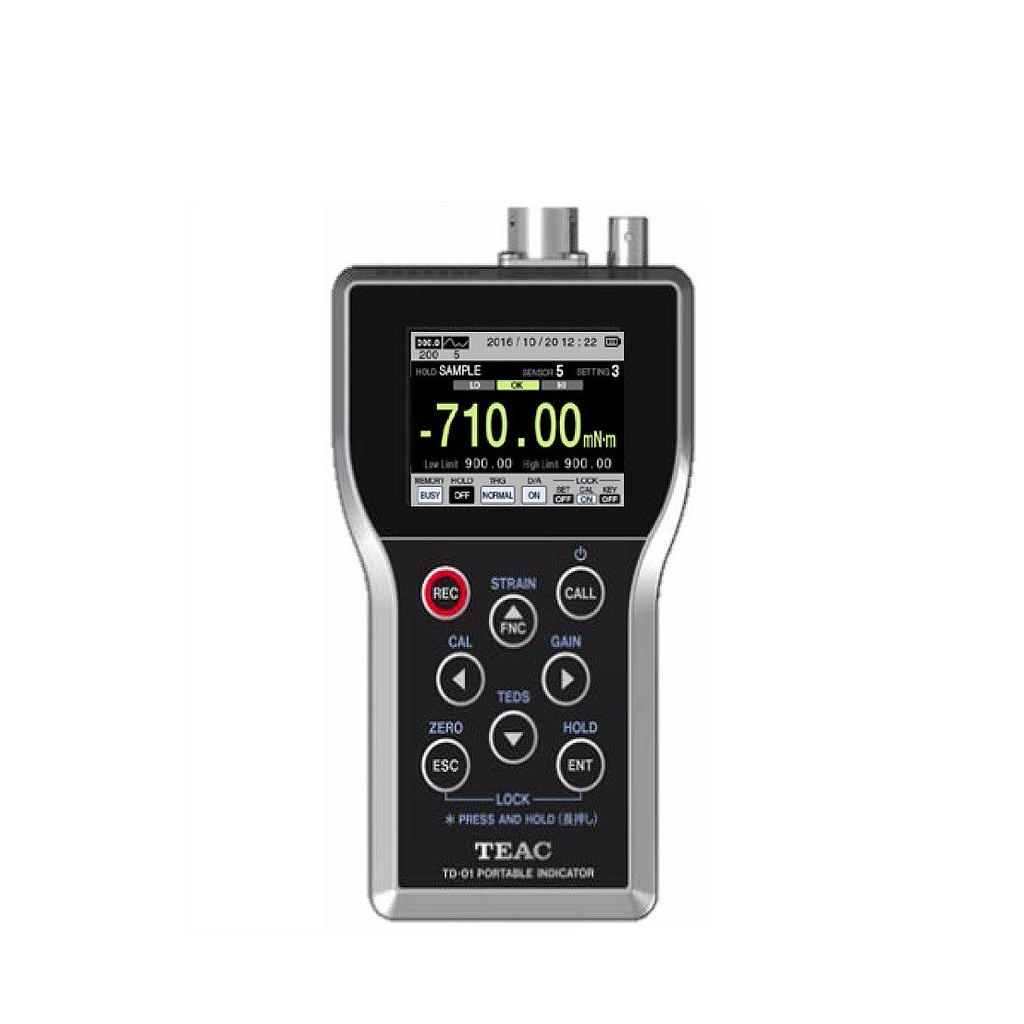

TEAC TD-01 Portable Digital Indicator

Compatible sensors: Strain gauge transducer

Signal input terminals: Round connector (NDIS7P)/terminal bank(connect only one at a time)

Bridge Voltage: DC, 2.5 V ±5% (30mA maximum current)

Signal input range: ±5 mV/V

D/A output: +2V

Equivalent input/TEDS

Calibration range: 0.3 mV/V-5.0 mV/V

Calibration precision: Within 0.1% F.S. (when using a 1m standard TEAC $8, 6-core shielded cable with 3500 impedance, when 5mV/V)

Precision

Linearity: Within 0.01% F.S. + 1 digit (when 5mV/V)

Zero drift: Within 0.5 µV/°C (input conversion value)

Gain drift: 0.005%/°C or less

A/D conversion: 1000 times/second, 24-bit

Digital filter: Moving average (select from OFF, 16, 32, 64, 128, 256, 512, 1024, 2048)

D/A output

Output connector: BNC

Output voltage: ±2.0 V

Resolution: 70.16 µV typ

Linearity: 0.02% F.S. or less

Zero drift: 0.1 mV/°C or less

Gain drift: 0.003%/°C or less

TEDS function: IEEE1451.4 class 2 mix mode interface

Display

Display: 2.4" color TFT LCD

Display modes: Setting screens, indicator value digital display, graph display, recorded data list display, static strain display

Languages: Japanese/English

Indicator value

Display range: -99999 to 99999

Decimal point: Display position selectable

Power supply: 4 alkaline or NiMH AA batteries

USB bus power (built-in Micro-USB B connector)

Operating temperature range: 0 deg to 40 deg * C

Storage temperature range: - 20 deg~60 deg * C

Operating humidity range: 85% RH or less (without condensation)

External dimensions (WxHxD): Approximately 85mm * 140mm * 35mm without protrusions)

Weight: About 320 g (including batteries)

Datasheet
