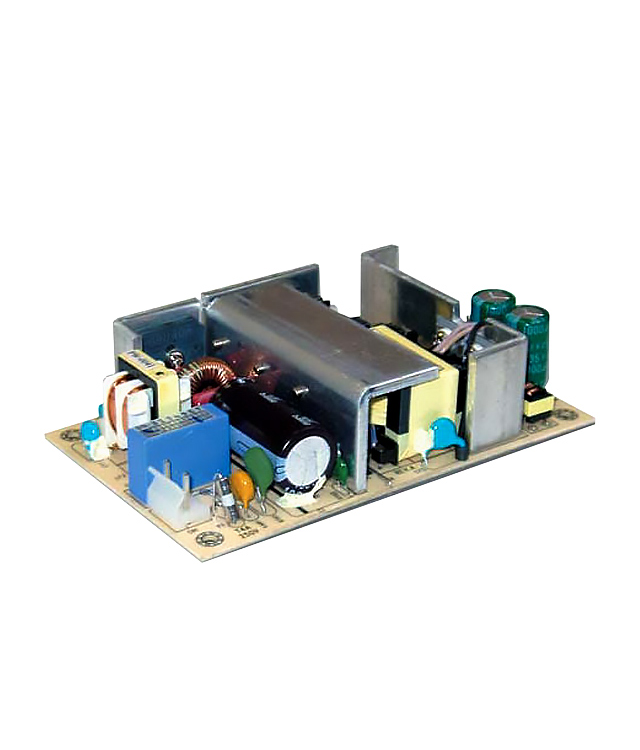

TDK-Lambda SCS120PW19 Single Output Power Supplies (120W, 19V, 6.32A, 2%)

Output Voltage: 19V

Output Load: 6.32A

Output Regulation: 2%

Output Power: 120W

Line & Load Regulation %: See model selector

Ripple & Noise: 1%

Hold Up Time (typical): 16ms (Full load at 115VAC input)

Overcurrent Protection: 105 - 120%

Overvoltage Protection: 110 - 130%, cycle AC line to reset

Input Voltage Range: 90-264 VAC, 47-63 Hz (440Hz with reduced PFC)

AC Input Current: 2.5A Max

Harmonic Correction (PFC): Meets EN61000-3-2 (typically >0.9)

Efficiency: Typically 85% full load at nominal AC Line

Inrush Current Limiting: <50A peak @ 230VAC cold start

Leakage Current: <0.75mA (264VAC, 60Hz)

Cooling: Convection

Withstand Voltage: Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VDC

Isolation Resistance: >20M at 25°C & 70%RH, Output to Ground 500VDC

Operating Temperature: 0 to +40°C, derate linearly to 50% load from 40°C to 60°C

Temperature Coefficient: ±0.05%/°C

Storage Temperature: -10 to +70°C

Humidity (non-condensing): 20-90%RH operating, 20-95%RH non-operating

Shock: < 196.1m/s2 (20G)

Vibration: 10Hz-55Hz amplitude (sweep 1 min), <2G X, Y, Z axis for 1 hour each

Altitude: 2000m operating, 5000m storage

Size W x L x H in: 3 x 5 x 1.27”

Weight g: 300
