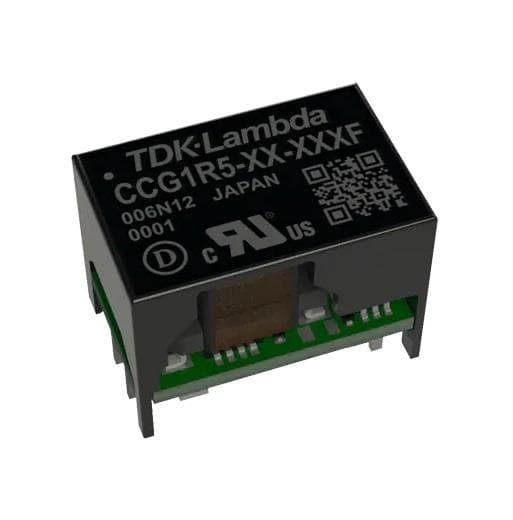

TDK-Lambda CCG1R5-12-03SF Isolated Input 5/12VDC, Output 3.3V 0.4A, 1.32W TH
ManufacturerTDK-Lambda(View more products from this manufacturer)
ModelCCG1R5-12-03SF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10.4 mm (0.409 in)
Height: 11.5 mm (0.453 in)
Length: 15.7 mm (0.618 in)
Industry: Industrial
Output Power: 1.5 W
REACH - SVHC: Details
Input Voltage: 4.5 V to 18 V
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 18 V
Input Voltage - Min: 4.5 V
Input Voltage, Nominal: 12 V
Output Current-Channel 1: 400 mA
Output Voltage-Channel 1: 3.3 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
