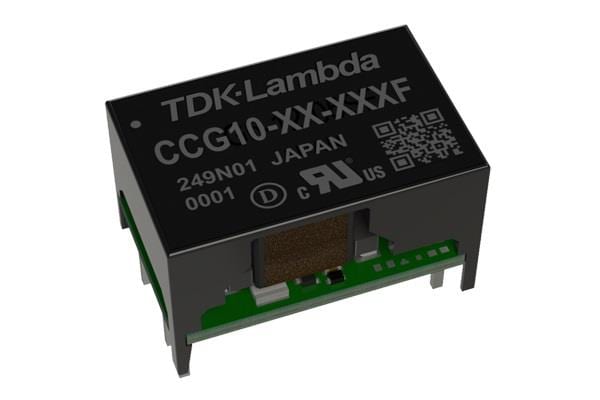

TDK-Lambda CCG10-48-05SF Isolated 10W 48Vin 5Vout Single DIP
ManufacturerTDK-Lambda(View more products from this manufacturer)
ModelCCG10-48-05SF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.4 mm (0.488 in)
Height: 11.5 mm (0.453 in)
Length: 19 mm (0.748 in)
Industry: Industrial
Output Power: 10 W
REACH - SVHC: Details
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 76 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
