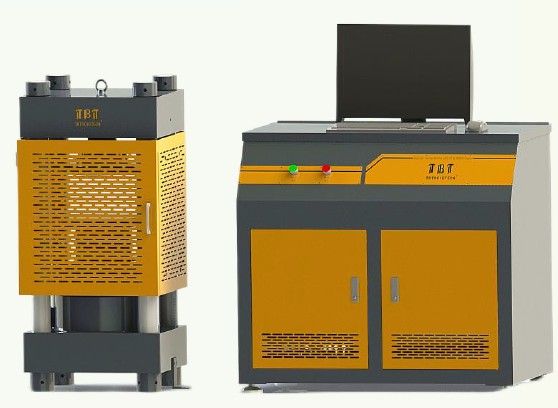

TBT CTM-2000AG Compression Testing Machine

Model : TBTCTM-2000AG

Capacity : 2000KN max.

Measuring range :  0~2000

Relative error :  ±1%

Pressure plate size : D295*T32mm (round) upper plate

D295*T45mm (round) lower plate

Distance Piece : D200*T50mm *3pcs

D200*T75mm *1pc

Maximum distance between upper & lower plate : 330mm (380mm)

Piston stroke : 50mm (100mm)

Loading speed Around : 0.2~10KN/s

Power supply : 220VAC 50HZ 750W

Dimensions Around : 900×400×1000 (L*W*H)

Net weight Around : 780kg

Standard package

1 Main Unit 1pc

2 Controlling Unit 1pc

3 PC 1pc

4 Keyboard and Mouse 1pc

5 Laser Printer 1pc

6 Distance Piece 1set
