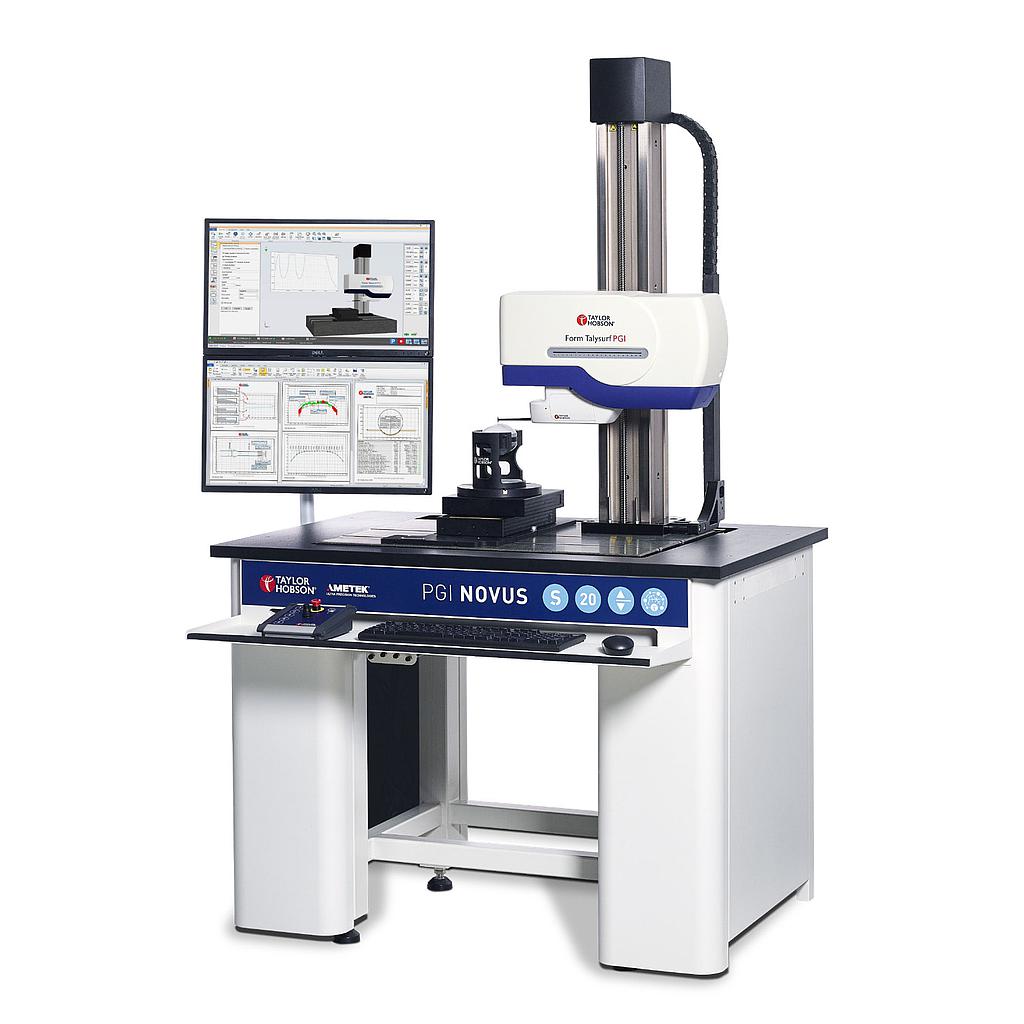

Taylor Hobson PGI NOVUS Advanced Surface Finish, Contour, 3D & Diameter Measuring Equipment

Automated force control

Automatic lift-lower

Diameter & angle capability

Metrology 4.0 Software with Virtual display, Variable programming and Part Co-ordinate system (PCS)

Gauge resolution down to 0.2 nm

Gauge range up to 20 mm

Advanced Surface Finish, Contour, 3D & Diameter Measuring Equipment

The Form Talysurf® PGI NOVUS is the most advanced system for surface finish, contour, 3D and diameter measurement, delivering unique benefits for both design and production. This instrument is designed with class leading 20 mm gauge range with 0.2nm resolution with the capability to measure surface finish (roughness, form, waviness) diameter, included angle, in a normal and inverted direction with the same speed and accuracy.

This system is an ideal solution for bearings, injectors and precision component manufacturers. Get instant measurement analysis feedback like surface finish, contour and topography with Metrology 4.0 software.

At the heart of the Form Talysurf® PGI NOVUS is a ground-breaking dual bias gauge. It is an advanced surface finish, 3D, diameter and contour measuring equipment.

The Form Talysurf® PGI NOVUS surface finish measuring instrument delivers 20 mm gauge range with a standard 100 mm stylus. The PGI NOVUS gauge has been designed to provide the user with greater measurement flexibility.

Small, medium and large complex parts can be measured on a single system. Buy with confidence and future-proof your investment. Using a 200 mm stylus provides an industry-leading 40 mm gauge range with full surface finish capability.

Applications

Ball screw axial measurement - both sides for PCD

Bearings - spherical, roller and four-point contact

Gears - involute form

Fuel injectors - straightness and seat angle

Multi-part measurement - using a single program

Diameter & angle capability with reverse bias gauge

The dual bias NOVUS gauge combined with the new high precision column delivers unparalleled diameter measurements to sub-micron accuracies. This capability is critical to manufacturers of components such as bearings, injectors and ball screws.

The above attributes coupled with the instrument's ability to measure internal or external angle make the Form Talysurf® PGI NOVUS a truly versatile system.
