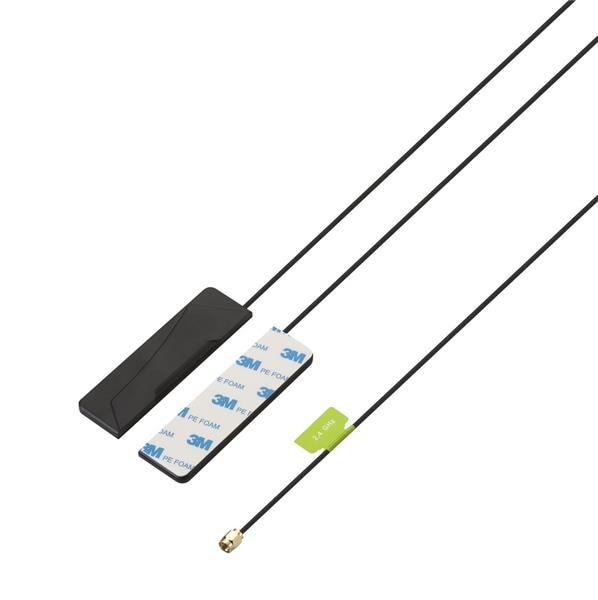

Taoglas WSA.2400.A.101151 Passive Antenna Phoenix WSA.2400.A Adhesive Mount Bluetooth I-Bar 2.4GHz Antenna

Gain: 1.18 dBi

VSWR: 2:1

Style: I-Bar

Width: 30 mm

Height: 7.7 mm

Length: 105 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 1 M RG174

Technology: WiFi

Application: First Tier Automotive Application, Aftermarket, Telematics

Unit Weight: 50 g

Cable Length: 1 m

For Use With: WiFi, WLAN

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Module

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
