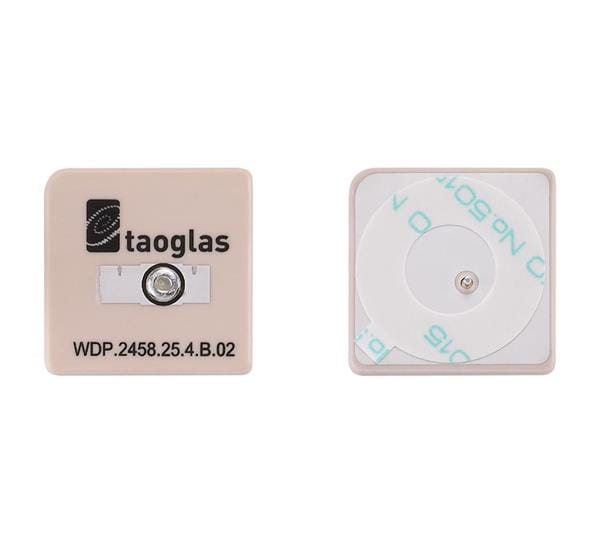

Taoglas WDP.2458.25.4.B.02 Passive Antenna 25*25*4mm WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna

Gain: 6 dBi, 8 dBi

Style: Ceramic

Width: 25 mm

Height: 4 mm

Length: 25 mm

Impedance: 50 Ohms

Application: Access Points, Tablets, HD Video Streaming, Routers, Automotive, Home Automation, Industrial Automation, Drones, Quad-Copters, UAV, Remote Control Application

Unit Weight: 9.500 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Pin

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
