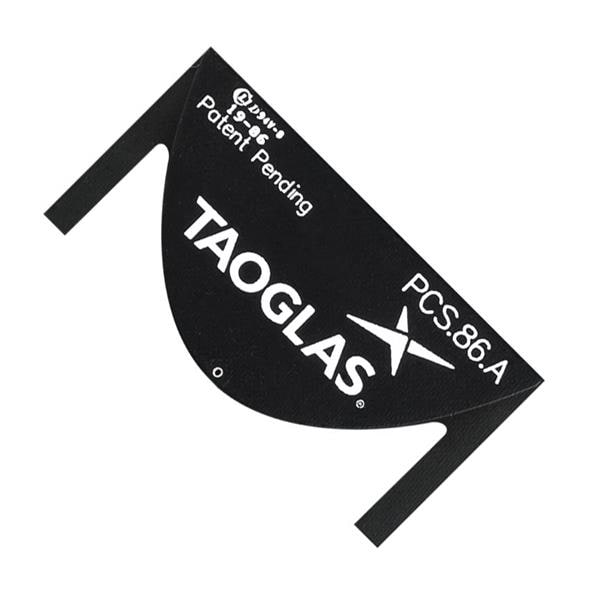

Taoglas PCS.86.A PCB Antennas PCS.86.A Reach Wideband 5G/4G SMD Antenna

Gain: 1.5 dBi, 1.2 dBi, 4.6 dBi, 3.5 dBi, 5.1 dBi, 4.6 dBi, 4.9 dBi, 0.728 dBi

VSWR: 3:1

Style: Round

Width: 16 mm

Height: 1.6 mm

Length: 32 mm

Impedance: 50 Ohms

Application: 5G, 4G

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 8 Band

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 791 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
