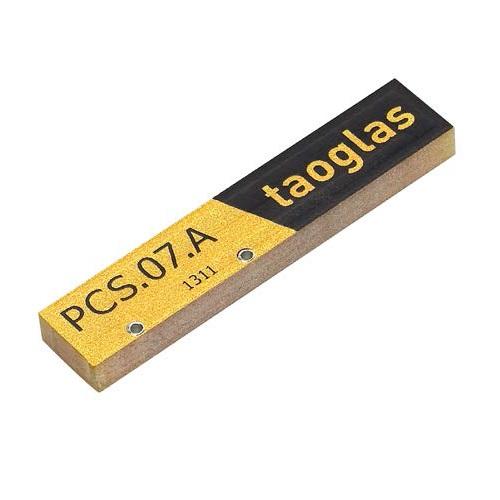

Taoglas PCS.07.A Passive Antenna Nemesis PCS.07 3G/2G Cellular SMD 35*7*3mm Antenna

Gain: 2.9 dBi

Width: 7 mm

Height: 3 mm

Length: 35 mm

Impedance: 50 Ohms

Application: Cellular Application, Telematics, Automotive Sector

Unit Weight: 3 g

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 5 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Chip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
