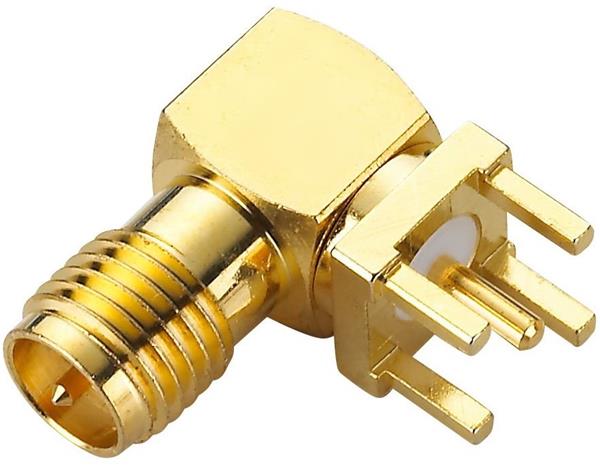

Taoglas PCB.RPSMAFRA.HT PCB Connectors SMA RA Reverse Polarity PCB Mount, Jack, Gold, 50ohm, Through Hole Pin

Gender: Jack (Pin)

Polarity: Reverse

Frequency: DC to 6 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: RP-SMA

Body Style: Right Angle

Body Finish: Gold

Orientation: Right Angle

Unit Weight: 4 g

Body Material: Brass

Mounting Style: Through Hole

Voltage Rating: 170 V

Board Thickness: 0.4 mm

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Minimum Frequency: DC

Termination Style: Solder Pin

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
