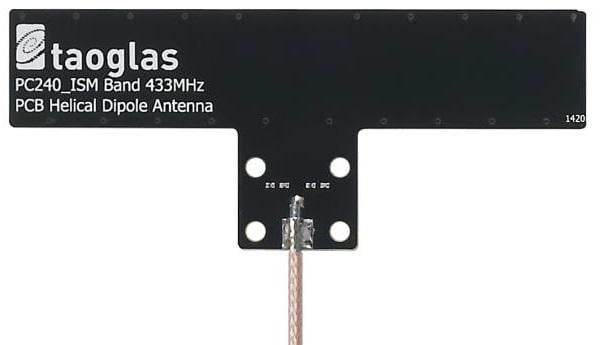

Taoglas PC240.09.0300K Passive Antenna PC240 433MHz -1dBi Adhesive/Permanent Mount Helical Dipole, 0.3M RG-316

Gain: - 0.97 dBi

VSWR: 2:1

Style: T-Bar

Width: 40 mm

Height: 3 mm

Length: 96 mm

Impedance: 50 Ohms

Cable Type: RG316

Application: Home Security, Alarm, Home Automation, Metering, Remote Control, Industrial Control

Unit Weight: 18 g

Cable Length: 0.3 m

Polarization: Linear

Mounting Style: Screw Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 433 MHz

Mechanical Style: Helical

Maximum Frequency: 433 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: MMCX Male

Protocol - WiFi - 802.11: LoRaWAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
