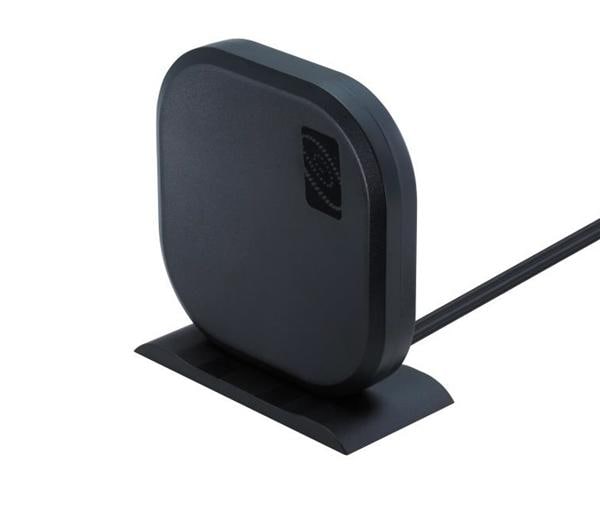

Taoglas LMA101.A.BI.001 MIMO Gemini LMA101 2*5G/4G 600-6000MHz MIMO Magnetic Mount Antenna

Gain: 3.4 dBi

Style: Panel, Square

Width: 164 mm

Height: 36.5 mm

Length: 164 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M CFD200

Technology: Cellular, LTE, MiMo

Application: HD Real-time Streaming Video over LTE, Internet of Things, Digital Signage, HD Broadcast Systems

Unit Weight: 400 g

Cable Length: 1 m

For Use With: 4G/3G/2G MIMO cellular routers

Polarization: Linear

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Bracket Mount

Number of Bands: 2 Band

Center Frequency: 657 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3400 MHz, 3500 MHz, 4200 MHz, 4900 MHz, 5200 MHz, 5800 MHz

Mechanical Style: Module

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
