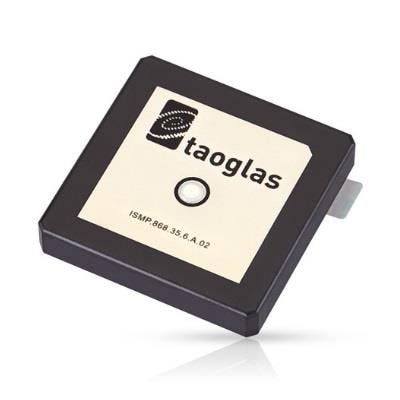

Taoglas ISMP.868.35.6.A.02 Passive Antenna ISMP.868.35.6.A.02 ISM 868MHz Patch Antenna (35*35*6mm)

Gain: 2.17 dB

Style: Ceramic

Width: 35 mm

Height: 6 mm

Length: 35 mm

Impedance: 50 Ohms

Application: ISM Application

Unit Weight: 34.300 g

Polarization: RHCP

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 900 MHz

Minimum Frequency: 850 MHz

Termination Style: Pin

Protocol - Sub GHz: ISM, RFID

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
