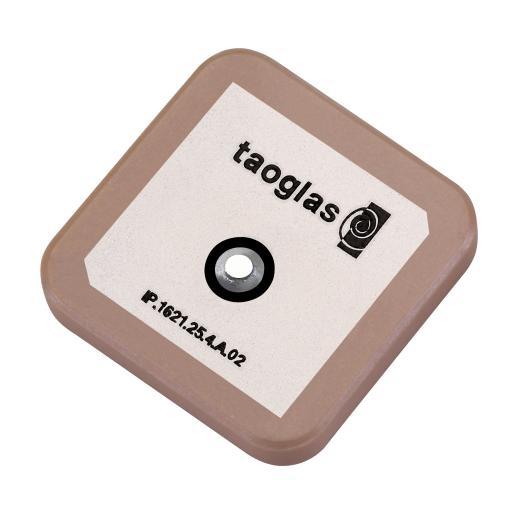

Taoglas IP.1621.25.4.A.02 Passive Antenna Iridium 1621MHz Patch Antenna 25.1*25.1*4mm
ManufacturerTaoglas(View more products from this manufacturer)
ModelIP.1621.25.4.A.02
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 2 dBi
VSWR: 1.5
Style: Ceramic
Width: 25.1 mm
Height: 4 mm
Length: 25.1 mm
Bandwidth: 16 MHz
Impedance: 50 Ohms
Technology: Iridium
Application: Iridium
Unit Weight: 10 g
Polarization: RHCP
Mounting Style: Adhesive Mount
Number of Bands: 1 Band
Center Frequency: 1.621 GHz
Mechanical Style: Patch
Ground Plane Size: 50 mm x 50 mm
Maximum Frequency: 1.6265 GHz
Minimum Frequency: 1.616 GHz
Termination Style: Pin
Protocol - GPS, GLONASS: Iridium
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
