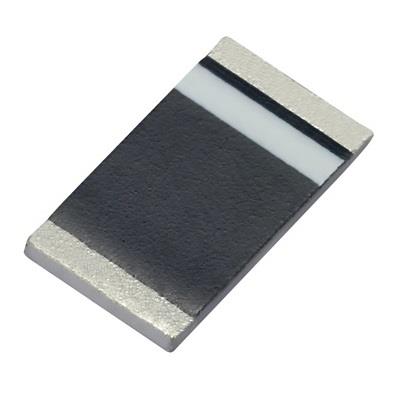

Taoglas ILA.09 Passive Antenna ILA.09 915MHz 5*3*0.5mm 0.39dBi Ceramic Loop Antenna

Gain: 0.39 dBi

Style: Chip

Width: 3 mm

Height: 0.5 mm

Length: 5 mm

Impedance: 50 Ohms

Application: Automated Meter Reading, RFID, Remote Monitoring, Medical, Sensing, Alarm Sensing, Handheld Devices

Unit Weight: 20 mg

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Loop

Ground Plane Size: 80 mm x 40 mm

Maximum Frequency: 928 MHz

Minimum Frequency: 902 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM, RFID

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
