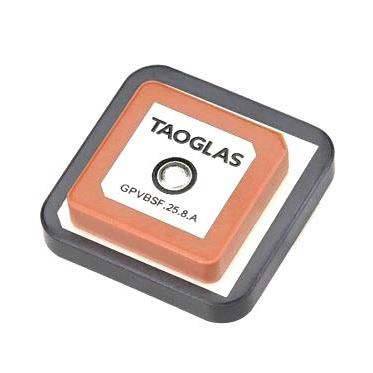

Taoglas GPVBSF.25.8.A Passive Antenna GPVBSF.25.8.A - GPS L1 / L5 & BeiDou B1 Single Feed Stacked Patch Antenna

Gain: 2.5 dBi, 3.4 dBi, 3.1 dBi

VSWR: 2:1, 2:1, 2:1

Style: Stacked

Width: 25 mm

Height: 8.12 mm

Length: 25 mm

Impedance: 50 Ohms

Application: RTK, Wearables, Transportation, Agriculture, Navigation, Security, Autonomous Vehicles

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 1.561 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.57542 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
