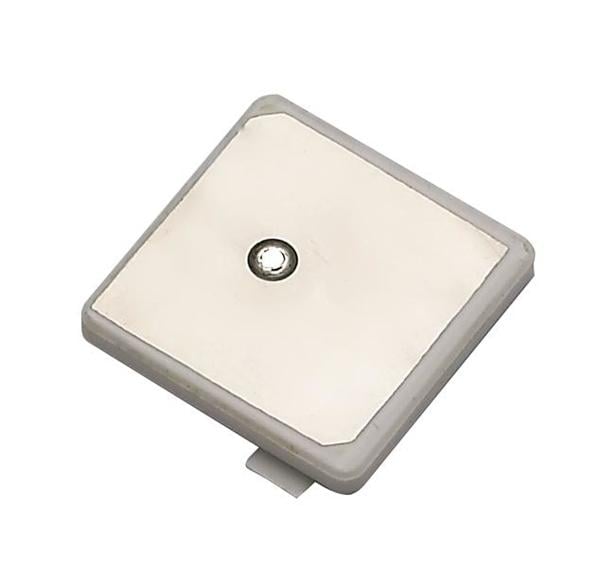

Taoglas GP.1575.35.3.A.02 Passive Antenna GP.1575.35.3.A.02 GPS/Galileo 35*35*3.5mm 1575.42MHz Patch Antenna
ManufacturerTaoglas(View more products from this manufacturer)
ModelGP.1575.35.3.A.02
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 2 dBi
VSWR: 1.5
Style: Ceramic
Width: 35 mm
Height: 3 mm
Length: 35 mm
Bandwidth: 22 MHz
Impedance: 50 Ohms
Technology: GPS
Application: Navigation, Position Tracking System
Unit Weight: 10 g
Polarization: RHCP
Mounting Style: Adhesive Mount
Number of Bands: 1 Band
Center Frequency: 1.57542 GHz
Mechanical Style: Patch
Ground Plane Size: 50 mm x 50 mm
Maximum Frequency: 1.581 GHz
Minimum Frequency: 1.569 GHz
Termination Style: Pin
Protocol - GPS, GLONASS: Galileo, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
